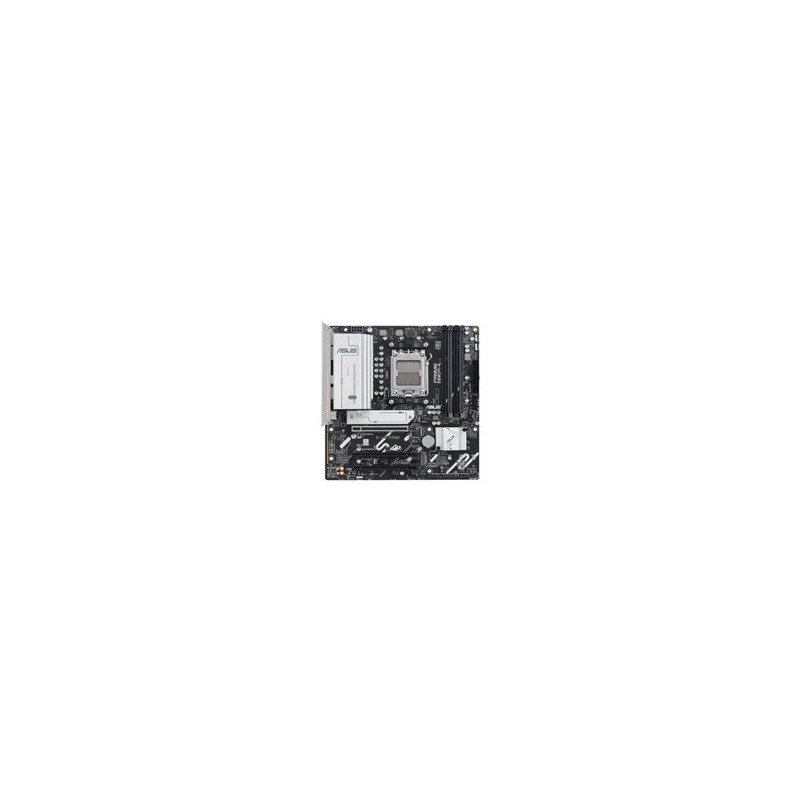

MB ASUS B850 AMD S-AM5 9A GEN /4X DDR5 7600 /HDMI /2X DP /2X USB 3.2 /MICRO ATX /GAMA MEDIA

LAS PLACAS BASE DE LA SERIE ASUS PRIME ESTáN DISEñADAS POR EXPERTOS PARA LIBERAR TODO EL POTENCIAL DE LOS PROCESADORES AMD RYZEN 9000 SERIES.

LA PLACA BASE PRIME B840M-A OFRECE A LOS USUARIOS Y A LOS ENSAMBLADORES DE PC UNA VARIEDAD DE OPTIMIZACIONES DE RENDIMIENTO A TRAVES DE FUNCIONES INTUITIVAS DE SOFTWARE Y FIRMWARE.

ESTA DISEñADA PARA SER COMPATIBLE CON PC CON IA AVANZADA, OFRECIENDO LA POTENCIA Y LA CONECTIVIDAD NECESARIAS PARA APLICACIONES DE IA EXIGENTES.

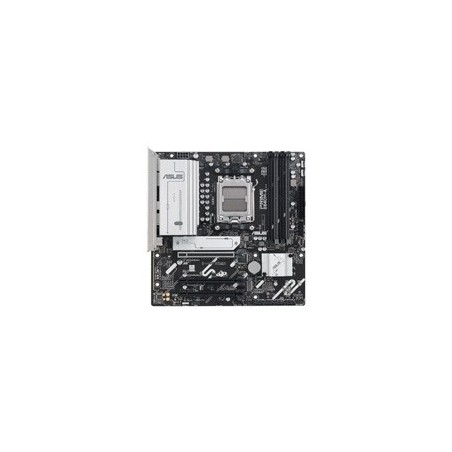

PRIME B840M-A

CPU AMD SOCKET AM5 FOR AMD RYZEN 9000 AND 8000 AND 7000 SERIES DESKTOP PROCESSORS

CHIPSET AMD B840 CHIPSET

MEMORY 4 X DIMM SLOTS, MAX. 256GB, DDR5 - SUPPORTS UP TO 7600+MT/S (OC) WITH RYZEN 9000 AND 8000 AND 7000 GRAPHICS 2 X DISPLAYPORT, 1 X HDMI PORT

EXPANSION SLOTS:

AMD RYZEN 9000 AND 7000 SERIES DESKTOP PROCESSORS*

1 X PCIE 4.0 X16 SLOT (SUPPORTS X16 MODE)

AMD RYZEN 8000 SERIES DESKTOP PROCESSORS

1 X PCIE 4.0 X16 SLOT (SUPPORTS X8/X4 MODE)**

AMD B840 CHIPSET

2 X PCIE 3.0 X16 SLOTS (SUPPORT X1 MODE)

STORAGE:

TOTAL SUPPORTS 3 X M.2 SLOTS AND 4 X SATA 6GB/S PORTS

AMD RYZEN 9000 AND 7000 SERIES DESKTOP PROCESSORS

M.2_1 SLOT (KEY M), TYPE 2280 (SUPPORTS PCIE 4.0 X4 MODE)

M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE)

AMD RYZEN 8000 SERIES DESKTOP PROCESSORS

M.2_1 SLOT (KEY M), TYPE 2280 (SUPPORTS PCIE 4.0 X4 MODE)

M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4/X2 MODE)*

AMD B840 CHIPSET

M.2_3 SLOT (KEY M), TYPE 2280 (SUPPORTS PCIE 3.0 X4 MODE)

4 X SATA 6GB/S PORTS

* SPECIFICATIONS VARY BY CPU TYPES.

AMD RAIDXPERT2 TECHNOLOGY

RYZEN 9000 SERIES PROCESSORS: RAID 0/1/5/10

RYZEN 8000 SERIES PROCESSORS: RAID 0/1

RYZEN 7000 SERIES PROCESSORS: RAID 0/1/10

ETHERNET 1 X REALTEK 2.5GB ETHERNET, ASUS LANGUARD

BACK PANEL I/O PORTS

2 X USB 10GBPS PORTS (2 X TYPE-A)

1 X USB 5GBPS PORT (1 X USB TYPE-C®)

4 X USB 2.0 PORTS (4 X TYPE-A)

2 X DISPLAYPORT

1 X HDMI PORT

1 X REALTEK 2.5GB ETHERNET PORT

3 X AUDIO JACKS

1 X BIOS FLASHBACK BUTTON

BIOS 256 MB FLASH ROM, UEFI AMI BIOS

MANAGEABILITY WOL BY PME, PXE

OPERATING SYSTEM WINDOWS 11, WINDOWS 10 64-BIT

FORM FACTOR MICRO-ATX FORM FACTOR 9.6 INCH X 9.6 INCH (24.4 CM X 24.4 CM)
