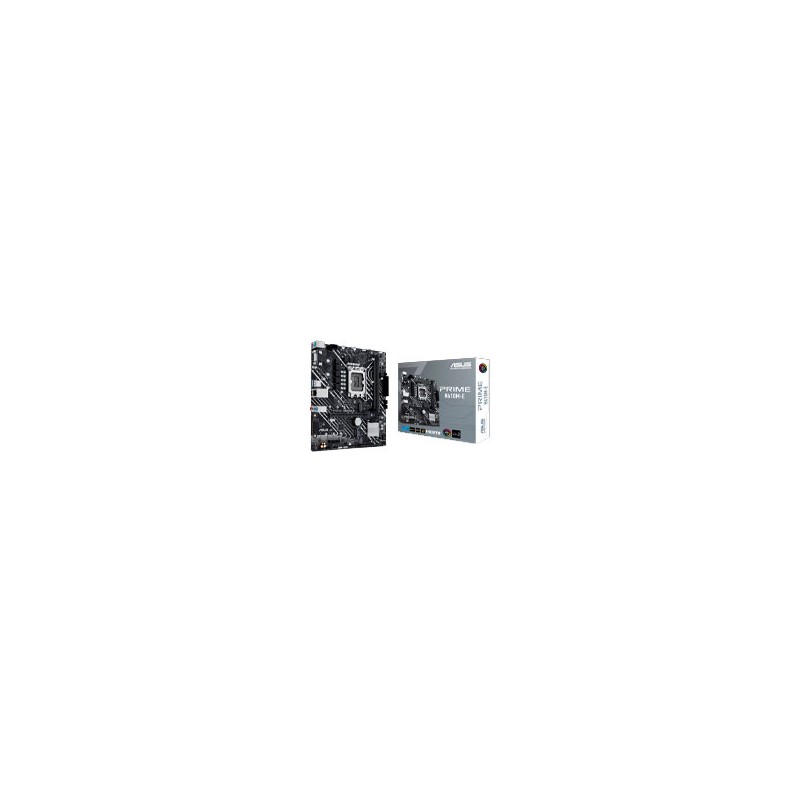

MB ASUS H610 INTEL S-1700 12A GEN/2X DDR5 5600/HDMI/D-SUB/M.2/2X USB3.2/MICRO ATX/GAMA BASICA

SOCKET INTEL® LGA 1700: LISTO PARA PROCESADORES INTEL® DE 12A GEN.

REFRIGERACIN COMPLETA: DISIPADOR DE CALOR PCH Y FAN XPERT.

CONECTIVIDAD ULTRARRPIDA: PUERTO M.2 DE 32 GBPS, ETHERNET REALTEK DE 1GB Y USB 3.2 GEN 1.

5X PROTECTION III: MLTIPLES PROTECCIONES DE HARDWARE PARA UNA PROTECCIN COMPLETA.

CPU

INTEL® SOCKET LGA1700 FOR INTEL® CORE 14TH AND 13TH GEN PROCESSORS, INTEL® CORE 12TH GEN, PENTIUM® GOLD AND CELERON® PROCESSORS

SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0

REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST.

INTEL® TURBO BOOST MAX TECHNOLOGY 3.0 SUPPORT DEPENDS ON THE CPU TYPES.

CHIPSET

INTEL® H610 CHIPSET

MEMORY

2 X DIMM SLOTS, MAX. 96GB, DDR5 5600/5400/5200/5000/4800 NON-ECC, UN-BUFFERED MEMORY

DUAL CHANNEL MEMORY ARCHITECTURE

SUPPORTS INTEL® EXTREME MEMORY PROFILE XMP

ACTUAL MEMORY DATA RATE DEPENDS ON THE CPU TYPES AND DRAM MODULES, FOR MORE INFORMATION REFER TO WWW.ASUS.COM FOR THE MEMORY QVL QUALIFIED VENDORS LISTS.

GRAPHICS

1 X DISPLAYPORT

1 X VGA PORT

1 X HDMITM PORT

GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES. PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATES.

SUPPORTS MAX. 4K@60HZ AS SPECIFIED IN DISPLAYPORT 1.4.

SUPPORTS 4K@60HZ AS SPECIFIED IN HDMITM2.1.

EXPANSION SLOTS

INTEL® CORETM PROCESSORS 14TH AND 13TH AND 12TH GEN

1 X PCIE 4.0 X16 SLOT

INTEL® H610 CHIPSET

1 X PCIE 3.0 X1 SLOT

STORAGE

TOTAL SUPPORTS 2 X M.2 SLOTS AND 4 X SATA 6GB/S PORTS

INTEL® CORETM PROCESSORS 14TH AND 13TH AND 12TH GEN

INTEL® H610 CHIPSET

M.2_1 SLOT KEY M, TYPE 2242/2260/2280 SUPPORTS PCIE 3.0 X4 MODE

M.2_2 SLOT KEY M, TYPE 2242/2260/2280 SUPPORTS PCIE 3.0 X2 MODE

4 X SATA 6GB/S PORTS

ETHERNET

1 X REALTEK 1GB ETHERNET

USB

REAR USB TOTAL 4 PORTS

2 X USB 3.2 GEN 1 PORTS 2 X TYPE-A

2 X USB 2.0 PORTS 2 X TYPE-A

FRONT USB TOTAL 5 PORTS

1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS

2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 3 USB 2.0 PORTS

AUDIO

REALTEK 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC

- SUPPORTS: JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING

- SUPPORTS UP TO 24-BIT/192 KHZ PLAYBACK

AUDIO FEATURES

- AUDIO SHIELDING

- PREMIUM AUDIO CAPACITORS

- DEDICATED AUDIO PCB LAYERS

A CHASSIS WITH AN HD AUDIO MODULE IN THE FRONT PANEL IS REQUIRED TO SUPPORT 7.1 SURROUND SOUND AUDIO OUTPUT.

BACK PANEL I/O PORTS

2 X USB 3.2 GEN 15G PORTS 2 X TYPE-A

2 X USB 2.0 PORTS 2 X TYPE-A

1 X DISPLAYPORT

1 X VGA PORT

1 X HDMITM PORT

1 X REALTEK 1GB ETHERNET PORT

3 X AUDIO JACKS

1 X PS/2 KEYBOARD PURPLE PORT

1 X PS/2 MOUSE GREEN PORT

INTERNAL I/O CONNECTORS

FAN AND COOLING RELATED

1 X 4-PIN CPU FAN HEADER

2 X 4-PIN CHASSIS FAN HEADERS

POWER RELATED

1 X 24-PIN MAIN POWER CONNECTOR

1 X 8-PIN 12V POWER CONNECTOR

STORAGE RELATED

2 X M.2 SLOTS KEY M

4 X SATA 6GB/S PORTS

USB

1 X USB 3.2 GEN 15G HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS

2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 3 USB 2.0 PORTS

MISCELLANEOUS

1 X AURA RGB HEADER

3 X ADDRESSABLE GEN 2 HEADERS

1 X CLEAR CMOS HEADER

1 X FRONT PANEL AUDIO HEADER AAFP

1 X COM PORT HEADER

1 X S/PDIF OUT HEADER

1 X SPEAKER HEADER

1 X SPI TPM HEADER 14-1PIN

1 X 10-1 PIN SYSTEM PANEL HEADER

SPECIAL FEATURES

ASUS 5X PROTECTION III

- DIGI VRM

- LANGUARD

- OVERVOLTAGE PROTECTION

- SAFESLOT CORE

- STAINLESS-STEEL BACK I/O

ASUS Q-DESIGN

- Q-DIMM

- Q-SLOT

- Q-LED CORE

ASUS THERMAL SOLUTION

- ALUMINUM HEATSINK DESIGN

AURA SYNC

- AURA RGB HEADER

- ADDRESSABLE GEN 2 RGB HEADERS

SOFTWARE FEATURES

ASUS EXCLUSIVE SOFTWARE

ARMOURY CRATE

- AURA CREATOR

- AURA SYNC

- FAN XPERT 2

- TWO-WAY AI NOISE CANCELLATION

AI SUITE 3

- PERFORMANCE AND POWER SAVING UTILITY

EPU

DIGI VRM

ASUS CPU-Z

NORTON 360 DELUXE 60 DAYS FREE TRIAL

WINRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CRASHFREE BIOS 3

- ASUS EZ FLASH 3

- ASUS UEFI BIOS EZ MODE

BIOS

128 MB FLASH ROM, UEFI AMI BIOS

MANAGEABILITY

WOL BY PME, PXE

ACCESSORIES

CABLES

2 X SATA 6GB/S CABLES

MISCELLANEOUS

1 X I/O SHIELD

1 X M.2 SSD SCREW PACKAGE

DOCUMENTATION

1 X USER GUIDE

OPERATING SYSTEM

WINDOWS® 11 64-BIT, WINDOWS® 10 64-BIT

FORM FACTOR

MATX FORM FACTOR

9.6 INCH X 8.3 INCH 24.4 CM X 21.1 CM
