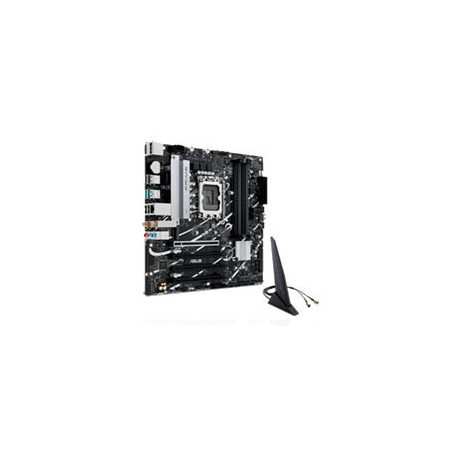

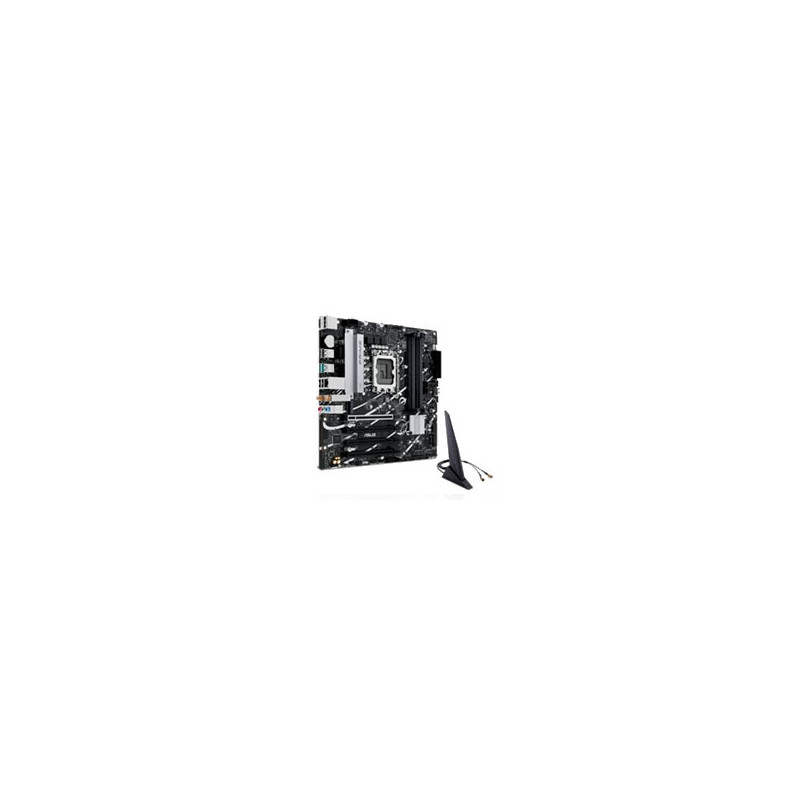

MB ASUS B760 INTEL S-1700 14A GEN /4X DDR5 5600 /HDMI /DP /3X M.2 /2X USB 3.2 /WIFI 6/BLUETOOTH /MICRO ATX /GAMA MEDIA

LAS PLACAS BASE ASUS PRIME ESTáN DISEñADAS POR EXPERTOS PARA LIBERAR TODO EL POTENCIAL DE LOS PROCESADORES INTEL CORE DE 14.ª Y 13.ª GENERACIóN . CON UN DISEñO DE ALIMENTACIóN ROBUSTO, SOLUCIONES DE REFRIGERACIóN INTEGRALES Y OPCIONES DE AJUSTE INTELIGENTES, PRIME B760M-A AX6 II OFRECE A USUARIOS Y ENSAMBLADORES DE PC DIY DIVERSAS OPTIMIZACIONES DE RENDIMIENTO MEDIANTE FUNCIONES INTUITIVAS DE SOFTWARE Y FIRMWARE. ESTA PLATAFORMA OFRECE LA POTENCIA Y LA CONECTIVIDAD QUE EXIGEN LAS APLICACIONES AVANZADAS DE IA PARA PC.

PRIME B760M-A AX6 II

CPU

INTEL® SOCKET LGA1700 FOR INTEL® CORE14TH AND 13TH GEN PROCESSORS, INTEL® CORE 12TH GEN, PENTIUM® GOLD AND CELERON® PROCESSORS*

SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0**

CHIPSET

INTEL® B760 CHIPSET

MEMORY

4 X DIMM, MAX. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHZ NON-ECC, UN-BUFFERED MEMORY*

DUAL CHANNEL MEMORY ARCHITECTURE

SUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP)

OPTIMEM II

GRAPHICS

1 X DISPLAYPORT**

1 X HDMITM PORT***

* GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES. PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATES.

** SUPPORTS MAX. 4K@60HZ AS SPECIFIED IN DISPLAYPORT 1.4.

*** SUPPORTS 4K@60HZ AS SPECIFIED IN HDMI 2.1.

EXPANSION SLOTS

INTEL® CORE PROCESSORS (14TH AND 13TH AND 12TH GEN)

1 X PCIE 4.0 X16 SLOT

INTEL® B760 CHIPSET

1 X PCIE 4.0 X16 SLOT (SUPPORTS X4 MODE)

2 X PCIE 4.0 X16 SLOT (SUPPORT X1 MODE)

STORAGE

TOTAL SUPPORTS 3 X M.2 SLOTS AND 4 X SATA 6GB/S PORTS*

INTEL® CORE PROCESSORS (14TH AND 13TH AND 12TH GEN)

M.2_1 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE)

INTEL® B760 CHIPSET

M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE)

M.2_3 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 3.0 X2 MODE)

4 X SATA 6GB/S PORTS

* INTEL® RAPID STORAGE TECHNOLOGY SUPPORTS SATA RAID 0/1/5/10.

ETHERNET

1 X REALTEK 1GB ETHERNET

WIRELESS AND BLUETOOTH

WI-FI 6

WI-FI 6 (802.11 A/B/G/N/AC/AX)

SUPPORTS 2.4/5GHZ FREQUENCY BAND

BLUETOOTH® V5.3

*THE BLUETOOTH VERSION MAY VARY, PLEASE REFER TO THE WI-FI MODULE MANUFACTURERS WEBSITE FOR THE LATEST SPECIFICATIONS.

USB

REAR USB (TOTAL 6 PORTS)

2 X USB 10GBPS PORTS (2 X TYPE-A)

4 X USB 2.0 PORTS (4 X TYPE-A)

FRONT USB (TOTAL 10 PORTS)

2 X USB 5GBPS HEADERS SUPPORT 4 ADDITIONAL USB 5GBPS PORTS

2 X USB 5GBPS PORT (SUPPORT USB TYPE-C®)

2 X USB 2.0 HEADERS SUPPORT 4 ADDITIONAL USB 2.0 PORTS
