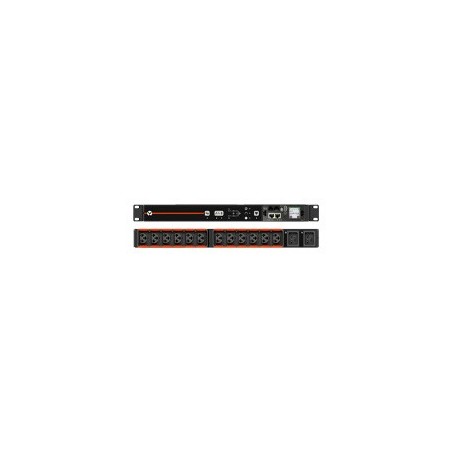

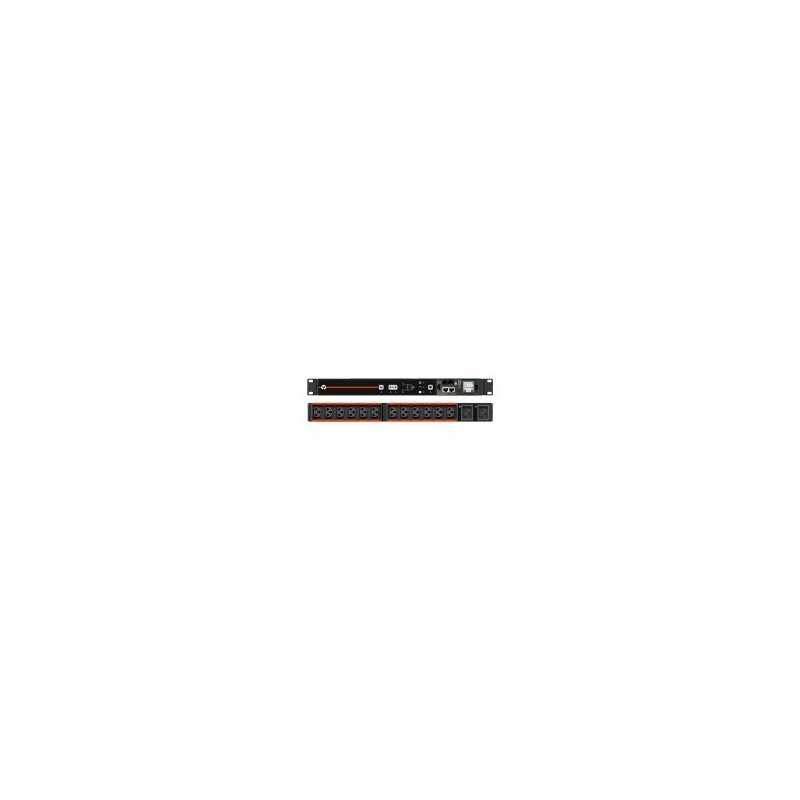

RPDU, RACK TRANSFER SWITCH MONITORED UNIT LEVEL, 15A, 120V, 1.4KW, HORIZONTAL, 10 NEMA 5-15R, 10FT / 3M POWER CORDS WITH 5-15P,

RACK TRANSFER SWITCH (RTS) DELIVERS REDUNDANT POWER TO SINGLE CORDED DEVICES. THE RTS AUTOMATICALLY DETECTS THE LOSS OF POWER AND SWITCHES THE POWER LOAD (NO PHASE-SYNCRONIZATION REQUIRED) TO THE ALTERNATIVE POWER SOURCE IN LESS THAN 4-8 MILLISECONDS WITHOUT THE NEED FOR HUMAN INTERVENTION.

SYSTEM FEATURES

MONITORING: INPUT POWER MONITORING. ENVIRONMENTAL MONITORING VIA OPTIONAL

REMOTE SENSORS. DAISY CHAIN ETHERNET CONNECTIVITY. LOCAL HIGH VISIBILITY DISPLAY.

MONITORING LEVEL 1: PHASE (A) MONITORING (KWH, W, VA, PF, V, A)

POWER SWITCHING: AUTO SWITCHING - IN EVENT OF POWER FAILURE

TRANSFER TIME: 4-8MS

OUT OF PHASE: TRANSFERS YES

FRONT PANEL HMI LED OVERLAY: YES

QUANTITY OF INPUTS: 2 (DUAL INPUT)

VOLTAGE: 100-120V

CURRENT: 15A

VA PER INPUT (LOAD CAPACITY): 1.4KW (120V)

FREQUENCY: 50/60HZ

OVER CURRENT PROTECTION: NONE

SWITCH: NO

LCD TOUCHSCREEN DISPLAY / AUTO ORIENTED: YES

POWER CABLE WIRE GAUGE: 14/3

POWER CABLE LENGTH: 10FT / 3M

POWER ENTRY LOCATION: REAR

PLUG TYPE: (2) NEMA 5-15P

RECEPTACLE/SOCKET TYPE #1: NEMA 5-15R

- QUANTITY ON REAR: 10

- STYLE: INDIVIDUAL

- VOLTAGE PER RECEPTACLE/SOCKET: 120V

NETWORK CONNECTION: DUAL 10/100/1000MBPS ETHERNET

PROTOCOLS SUPPORTED: DHCP, HTTP, HTTPS, IPV4, IPV6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (V1/V2C/V3), SYSLOG, TACACS+, MODBUS TCP

DATA ACCESS FORMATS: CSV DATALOG, JSON API, JSON DATALOG

USB SUPPORT: YES

IP RESET BUTTON: YES

HARD REBOOT BUTTON: YES

SERIAL CONNECTION: RS232 VIA RJ45

REMOTE SENSOR RJ CONNECTION JACKS: 1 (SUPPORTS UP TO 16 SENSORS)

MAXIMUM OPERATING TEMPERATURE: 60C / 140F

HEAVY STEEL - POWDER COAT FINISH: BLACK

CONFIGURATION: 19IN / 483MM HORIZONTAL RACKMOUNT

ADJUSTABLE 4 POST MOUNTING (RANGE): YES (24 - 37)

2 POST MOUNTING KIT: YES

PRODUCT WARRANTY: 5-YEAR LIMITED WARRANTY

CERTIFICATION/AGENCY: APPROVALS UL AND C-UL LISTED 62368-1

CERTIFICATION/AGENCY: APPROVALS ROHS COMPLIANT

CERTIFICATION/AGENCY: APPROVALS FCC PART 15 CLASS A CONFORMANCE

CHASSIS DIMENSIONS (HXWXD): 1.72IN X 17IN X 18IN / 44MM X 432MM X 457MM

SHIPPED WEIGHT: 17LBS (7.71KG)
