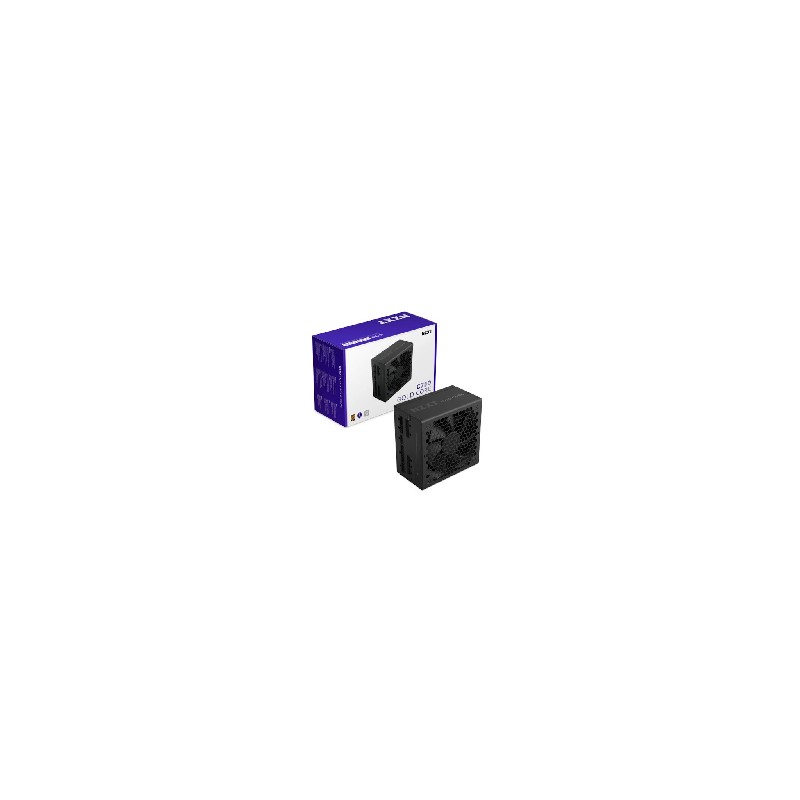

FUENTE DE PODER NZXT C750 GOLD CORE 80PLUS FULLY MODULAR ATX 3.1 POWER SUPPLY US POWER CORD

LA NZXT GOLD CORE ES UNA FUENTE DE ALIMENTACIóN ATX 3.1 TOTALMENTE MODULAR CON EFICIENCIA 80 PLUS GOLD Y CYBENETICS PLATINUM, CLASIFICACIóN DE RUIDO A+/A++ Y UN CONECTOR PCIE 5.1 DE 12 V-2X6. DISEñADA PARA GPU MODERNAS, OFRECE UNA ALIMENTACIóN LIMPIA Y SILENCIOSA CON UNA GESTIóN DE CABLES SENCILLA PARA PC DE ALTO RENDIMIENTO.

DIMENSIONES

ANCHO 150 MM

ALTO 86 MM

LARGO 150 MM

GENERAL WATTAGE 750 W

FACTOR DE FORMA ATX

ATX VERSION 3.1

80 PLUS RATING GOLD

CYBENETICS EFFICIENCY PLATINUM

CYBENETICS NOISE A++

MODULARFULLY MODULAR

CAPACITORS 105°C PERFORMANCE CAPACITORS

CABLE TYPE INDIVIDUALLY EMBOSSED WITH CABLE COMB

ZERO RPM FAN MODE YES

CABLE LENGTH AND CONNECTOR QUANTITY 24-PIN ATX POWER CABLE 600 MM (1)

4+4-PIN CPU POWER CABLE 700 MM (1) 8-PIN CPU POWER CABLE 700 MM (1)

6+2-PIN PCIE POWER CABLE 650 MM (2) 16-PIN (12+4) 12V-2X6 PCIE POWER CABLE

650 MM (1) (300W)

SATA CABLES 500 + 100 MM (8)

PERIPHERALS CABLE 500 + 100 MM (3)

AC INPUT RATING 100 240 VAC

10 5 A, 50 60 HZ

200 240 VAC (SOUTH KOREA)

5 A, 50 60 HZ

DC OUTPUT RATING

+3.3 V AND +5 V

20 A (120 W)

+12 V

62.5 A (750 W)

5VSB

3 A (15 W)

TOTAL

750 W

ENERGY EFFICIENCY

80 PLUS RATING

GOLD

10% LOAD

87.9% @ 115 V

20% LOAD

91.63% @ 115 V

50% LOAD

92.11% @ 115 V

100% LOAD

89.53% @ 115 V

FAN SPECS

SIZE

135 MM

TYPE

PWM

SPEED

2,300 ± 10% RPM

AIRFLOW

103.36 CFM

NOISE LEVEL

40.5 DBA

BEARING

FLUID DYNAMIC BEARING

OPERATION

MTBF

100,000 HOURS

TEMPERATURE

0 50°C (CONTINUOUS FULL LOAD)

ELECTRICAL FEATURES

PRODUCT INFO

GARANTIA 7 AÑOS

COMPLIANCE STANDARD

ATX12V V3.1 / EPS12V V2.92

REGULATION AND CERTIFICATION

CE, UKCA, FCC, IC, BSMI, CB (IEC 62368-1 ED. 3), RCM, KC
